SCI Video Systems FS-150

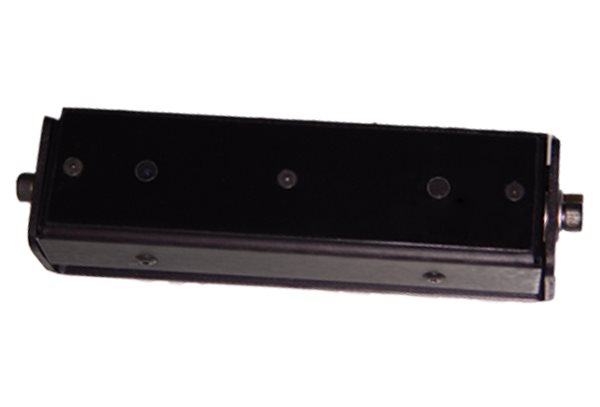

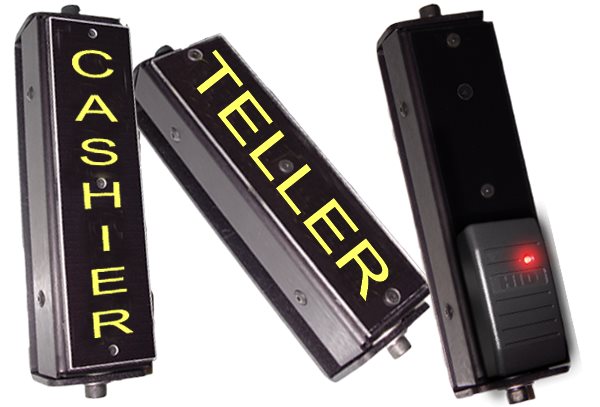

1/3" SONY Super HAD II CCD wit an adjustable door mounted camera housing.

Code

FS-150

Image Sensor: 1/3" SONY Super HAD II CCD
Effective Pixels: 768(H) x 494(V), 380K pixels
Scanning System: 525 lines 2:1 Interlace
Horizontal Resolution: Color:More than 600 TV linesTrue Day & Night: More than 650 TV lines
Min. Illumination: Color:0.14 Lux, B/W 0.014 Lux at F1.2
DWDR: Digital Wide Dynamic Range Compensation
S/N Ratio: More than 52dB (AGC OFF)
O.S.D: Built in - all function pull down menus
Approvals: UL Listed, FCC (Class A), CE Listed
Camera Connectors: BNC/2.5mm coaxial connector, interface power cable supplied w/housing
Color Options: Bronze or Silver anodized construction
Mechanical (WxHxD): 1.75" x 34.5" x 1.375" (44.45mm x 152mm x 34.9mm)
Weight: 1.2 lbs. (.5kg)
Power Source: Regulated 12VDC Power Input (Required)
Power Consumption: Less than 150mA
Operating Temperature: 14F - 122F (10C - +50C)
Replacement Power Supply: Regulated PS12V DC

Product Spec Sheet
