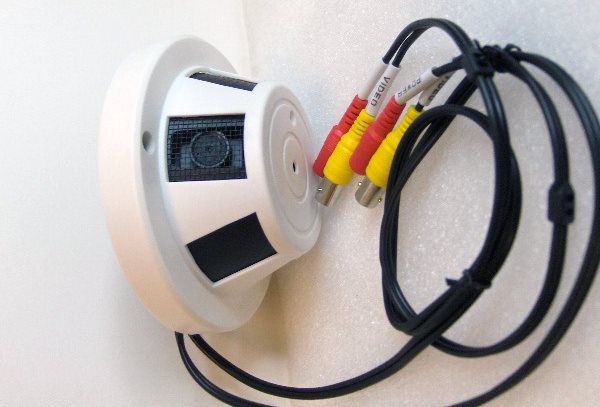

SCI Video Systems SD-Series

SCI Video Systems SD-Series

• Image sensor: 1/3" SONY SUPER HAD II CCD
• Effective Pixels: NTSC: 768(H)X494(V)
• Sensor Area: 4.9mmX3.7 mm
• Signal System: NTSC
• Horizontal Resolution: Color: More than 600 TVL • Day/Night: More than 650 TVL
• Minimum Illumination: Color: 0.14lux, B/W 0.014lux at F1.2
• Electronic Shutter: 1/60-1/100,000 sec
• S/N Ratio: More than 52db (AGC OFF)
• DWDR: Digital Wide Dynamic Range Compensation
• Lens: Fixed 3.6mm lens
• Video Output: 1.0Vp-p, 75Ω
• OSD: Built-in - All function parameter
• Power Source: Regulated 12VDC (Required)
• Power Consumption: less than 500mA
• Video Output: BNC Connector
• Power Input: 2.1 Barrel Plug + Center
• Operating Humidity: Below 85%
• Operating Temperature: 14F ~ 122F (-10C ~ +50C)
• Dimensions: 35mm X 35mm
• Environment: Indoor
• Approvals: UL Listed. FCC (Class A). CE Listed
• Weight: About 0.1 kg
