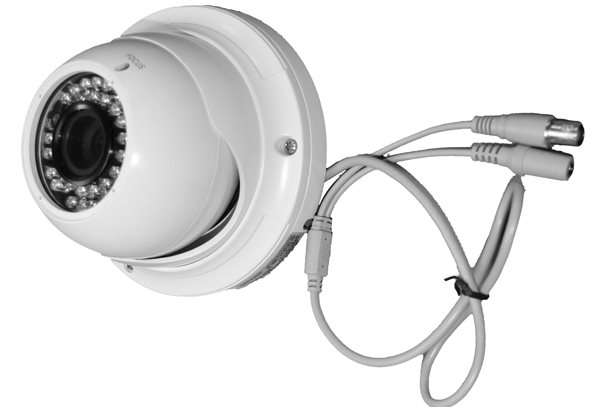

SCI Video Systems VD2-550IR

SCI Video Systems VD2-550IR

• Image sensor: 1/3" SONY SUPER HAD CCD
• Effective Pixels: NTSC: 768(H)X494(V)
• Sensor Area: 4.9mmX3.7 mm
• Signal System: NTSC
• Horizontal Resolution: 550TVL
• Minimum Illumination: 0 Lux (IR LED ON)
• Electronic Shutte:r Auto:1/50(1/60)-1/100,000Sec
• S/N Ratio: >48dB
• Gamma: 0.45
• Lens: 4mm-9mm varifocal lens manual iris
• Video Output: 1.0Vp-p, 75Ω
• IR Wave Length: 850nm
• Power Source: Regulated DC 12V ± 10% (Required)
• Power Consumption: less than 4W
• IR Distance: 40M
• Video Output: BNC Connector
• Power Input: 2.1 Barrel Plug + Center
• Operating Humidity: Below 85%
• Operating Temperature: 14F ~ 122F (-10C ~ +50C)
• Dimensions: 135mm X 90mm
• Environment: Indoor/Outdoor
• Construction: Die Cast Aluminum with high impact polycarbonate window
• Weight: 1.8 lbs
